Model NO.
JT707A
Transport Package
Neutral Packing
Specification
79mm*58mm*24mm
Trademark
Jointech
Origin
China
HS Code
9032899090
Production Capacity
10000 Units/Year
Screen Size:
No Screen
Use:
Automotive
Certification:
RoHS, FCC, CE
Warranty:
1 Year
Protection Grade:
IP67
Sheating Materia:
Nylon Plastic
Brief Introduction

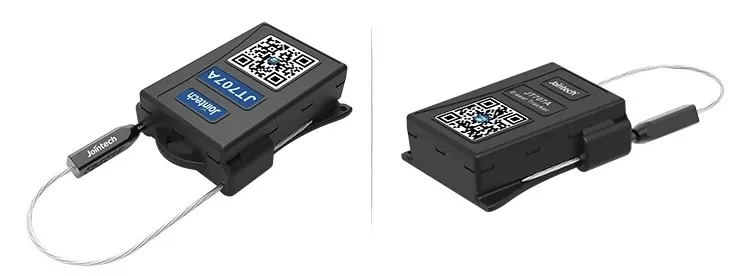

JT707A is a lightweight and easy-to-use electronic lead seal tracker, which is the comprehensive application of traditional disposable lead seal and Internet of things technology.
Product function
1. The traditional sealing function.
2. Location Tracking: Built-in Beidou /GPS module
3. Data Transmission: Built-in 2G/3G/4G communication module
4. Count of Sealing: Calculating the number of times of sealing and unlocking
5. Status Monitoring: The function of detecting the sealing status of the device
6. Abnormal alarm: Lock rope cutting alarm/low power alarm.
Product Feature1. Strong Adaptability:Rechargeable host & Sealing port, charging port, configuration port three in one
2. High security Level: The function of anti-connection detection & built-in E-SIM card
3. Long Working Time: Send 700-1000 messages on a full charge
4. Multiple SIM card modes: External & E-SIM cards.
5. Industrial Design: IP67 protection grade & salt fog resistance
6. Installation free
7. Simple Maintenance: The lock body(recharged & reusable), the lock rope(disposable & replaceable)
8. Global monitoring: Check the running track of the equipment abroad in real time
Product Parameters| Type | Description |
| Locating | GPS, Bedou, LBS |
| Data content: coordinates, speed, date, direction | |
| Information | Status of seal cable, motion sensor, location, battery |
| Unlocking counting | |
| Storage | Maximum 1000 data storage |
| Uploading blind area data | |
| Communication | 2G/3G supported |
| Alarm | Seal cable cut alert, low battery alert. |
| Battery management | Support 600 times data reporting |
| Low battery management | |
| Parameters | Dimension(L*W*H): 79*58*24mm |
| Length of seal cable: 300mm | |
| Weight: 95g | |
| Housing material: Nylon | |
| Working temperature: -30ºC ~+70ºC | |
| Storage environment: -45ºC~+80ºC | |
| Related humidity: 5%~95% | |
| Working current: <100mA(average), <20uA(standby) | |
| Battery level: 1500mAh | |
| Waterproof: IP65 | |
| GSM module frequency: 850, 900, 1800, 1900MHz | |
| GPS module: GPS L1 frequency(1575.42MHz), Beidou B1 frequency(1561.0MHz) |
Q: How long will the battery last ?
A: Battery life for E-seal Tracker is counted by data-sending times. It supports at least 400 data-sending which means you can have 400 reports. If you need 10 reports each day, the battery will last for 40 days.
Q: Can I replace the lock rope when the battery is not dead?How?A: Battery life for E-seal Tracker is counted by data-sending times. It supports at least 400 data-sending which means you can have 400 reports. If you need 10 reports each day, the battery will last for 40 days.
A: Yes. You can pull out the lock rope and insert new lock rope.
Q: Can I use my own SIM card ?
A: Yes. You can use your own SIM card but you need to tell us the APN settings. For APN settings, you can check here: https://cautop.com/store/jointech/
Q: Can I recharge or replace the battery ?
A: No. Due to special design, E-seal Tracker is a disposable tracker. Right now, there is no port for clients to recharge. If you take out the battery, it will damage the GSM and GPS antenna. You can directly throw it away after usage.
Q: Where can I receive alerts ?
A: click this icon on the top on Jointech's platform. Detailed information can be viewed.
Q: Can I set Geo-fence for E-seal Tracker ?
A: No. E-seal tracker only supports real-time tracking and rope-cut alarm. But our other products can set Geo-fence alarm.
Q: Can I receive SMS alarm ?
A: NO. But our other products support SMS alarm. You can contact us for more information.
Q: What if I want to use E-seal Tracker on my own platform ?
A: OK. Protocol or API can be offered for you. You can use it on your own platform.
Q: I have several different clients to use this product. Can I create sub account for my own clients on Jointech's platform ?
A: YES. You can create sub account for your own clients on Jointech's platform. And you can even manage account for your own clients. For detailed information, you can contact us about it.
